Maintaining a flat and trammed (aka level) bed on a bed slinging printer can be frustrating. Ender 3 bed leveling issues are common. We at HomeGrown 3D found an amazing solution: Bed Leveling Wheel Clips! The ultimate Ender 3 bed leveling tool.

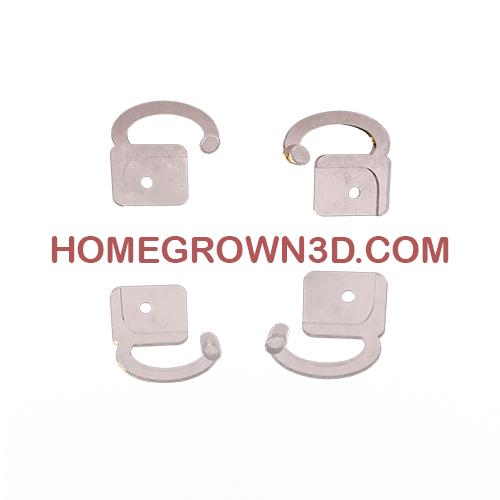

Announcing the release of the second edition of our Ender 3 Bed Leveling Wheel Clips! The ultimate Ender 3 bed tramming upgrade! Now with thicker arms so they hold the wheels in place even more!
Compatible with the Creality Ender 3, Ender 3 V2, and the Voxelab Aquila. We also released a compatible version with the light weight carriage featured on our TAC-01 printers. Reviews on Printables report it also works with the Ender 3 S1, and maybe more.
Our preferred Ender 3 auto bed leveling upgrade system – CR Touch. It’s not perfect and there are other options out there too, look for our article in the future on the subject.
Affiliate link, we earn from qualifying purchases.
Our preferred PEI Coated Spring Steel Bed and Magnet on Amazon. It’s thick and duel sided. If you haven’t tried printing on a PEI coated Spring Steel bed, you are missing out! Makes life much easier. This one is on the expensive side and we have had great results with cheaper options as well.
Affiliate link, we earn from qualifying purchases.
The Bed Leveling Wheel Clips lock the wheels in place, do not come loose from regular use, and allow you to adjust your bed .02mm per notch on the wheels. They enable you to use a PEI coated bed without fear of scratching it with the nozzle, and turn your Auto Bed Leveling system (like a BL-Touch) from a necessity into a luxury.
You can download the STL file for free at Printables. We also have a Tinkercad link so you can edit the design for other printers. The clips work great in PETG, ABS, ASA, and even in PLA. They work even better in reinforced nylons. Currently untested in Polycarbonate, but we will try it soon enough.
Get the Files!
Download the Ender 3 Bed Leveling Wheel Clips STL files at Printables, or find the editable files on Tinkercad.
Printables
Tinkercad
Keep reading for information on compatibility with yellow springs and silicone spacers, the TAC-01 3D printer, and our sources and inspirations for the designs.

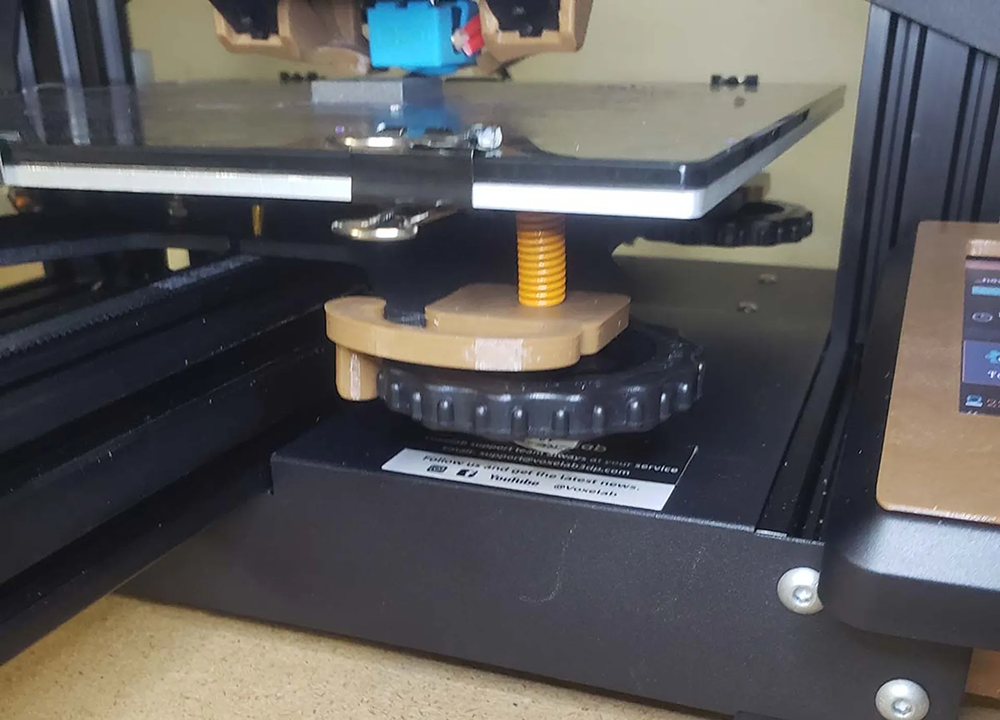

The Ender 3 Bed Leveling Wheel Clips are perfect for use with stock springs and superior to the traditional fixes. They are also compatible with yellow springs and silicone spacers. We think they are superior to fixed beds. Springs and silicone spacers alone give unreliable results, as they can come loose, require adjustments, and even worse if you tighten them too tight they may warp your bed. Fixed beds aren’t ideal either because they can’t be adjusted at all.
Ender 3 Bed Leveling Wheel Clips give you the best of all worlds. We recommend running your stock springs with hardly any tension. Dial in your bed level, and never lose it! Perfect for beginners and advanced users alike! Over 4500 downloads on Printables.com, with 65 reviews averaging 4.9 stars!
Homegrown 3D is featuring these clips on the TAC-01 3D printer. This is the first part released for the TAC-01! We will be releasing all the parts one at a time. You’ll find a list of all the parts used for the TAC-01 on our website under the 3D printer designs menu item. The TAC-01 serves as an upgrade guide for Creality 3D printers. Follow us on social media to hear when we publish the next design, and sign up for our Patreon for exclusive updates on the next release to stay ahead of the curve!
Light weight modular bed carriage from Befenybay that we feature on our TAC-01 printers with linear rails. Look for our release of linear rail mounts for this carriage in the near future!
Affiliate link, we earn from qualifying purchases.
Voxelab Aquila. This is basically an Ender 3 v2 but for $100 cheaper. Currently going for $150 at time of writing. We feature this as our base printer for the TAC-01.
Affiliate link, we earn from qualifying purchases.
Start Your TAC-01 3D Printer Build!
Download the Light Weight Modular Bed Carriage Bed Leveling Wheel Clips at Printables, or find the editable files on Tinkercad.
Keep reading for our sources and inspirations for the designs.
At Homegrown 3D, we strive for open sourcing, we love copyleft licenses, believe in transparency and seek to improve the 3D community through open source cooperation.
The inspiration for our clips came from bed leveling wheel locks designed by Monsieurglad on Thingiverse, for the Kingroon KP3s printer, https://www.thingiverse.com/thing:4893883. We had never thought of a bed leveling solution like that before! Genius!
We also found a dead link on Thingiverse for an Ender3 compatible version. It had been reposted on Cults3d: https://cults3d.com/en/3d-model/tool/heavy-duty-ender-3-bed-leveling-wheel-detent-clips Those have a good looking layout and thumb concept that inspired ours, but we made them easier to print and so that we can tweak the design as needed.
We just released our second edition of the clips. They have thicker arms than before, and we also have a remix for the light weight modular carriage. This carriage is featured on our TAC-01 printers Y axis linear rail mounts.
